Comprehensive HVAC Maintenance for a Commercial Building in Rancho Cucamonga
Comprehensive HVAC Maintenance for a Commercial Building in Rancho Cucamonga
Regular HVAC maintenance is essential for keeping commercial systems efficient, reliable, and safe. At American Cool, Heat, Air & Commercial Refrigeration, we recently performed a detailed maintenance check on a rooftop unit at a commercial property in Rancho Cucamonga. This blog walks you through the steps we took to inspect, clean, and optimize the HVAC system, showcasing the importance of preventative maintenance in avoiding costly breakdowns.
Step 1: Ensuring Safe Operation and Power Checks
Before beginning any maintenance, we verified the unit’s voltage and checked the fuses to confirm the system was powered correctly. Next, we de-energized the unit and used a meter to ensure no voltage was present, ensuring a safe working environment.

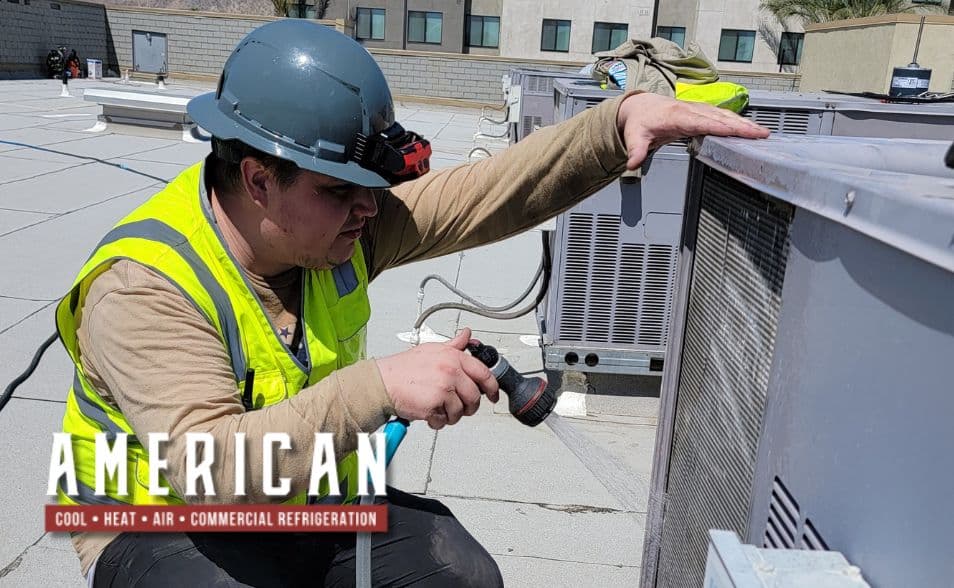

Step 2: Cleaning the Coils
A clean coil is critical for accurate system pressure readings. Starting with the condenser coil, we washed it thoroughly to remove dirt and debris. This ensures the unit operates efficiently and prevents rust or corrosion that can lead to water damage inside the building.
Step 3: Electrical Component Inspection
We inspected the electrical panel, checking for secure connections to prevent issues caused by wear and vibration. Key steps included:
• Tightening connections on capacitors and contactors.
• Verifying contactors were free from pitting or excessive wear.
• Ensuring wiring was secure and intact to avoid disruptions during operation.
Step 4: Testing and Replacing the Capacitor
The condenser fan motor’s capacitor was tested against manufacturer specifications. It was found to be below acceptable levels, which could increase motor amperage and accelerate wear. We replaced the capacitor to restore proper operation and prevent future motor damage.
Step 5: Blower and Pulley Inspection
The blower housing, motor alignment, and pulleys were checked for wear and tear. We ensured the motor and pulley alignment were correct and verified proper belt tension—neither too tight nor too loose. These steps are vital for maintaining optimal airflow and reducing strain on the motor.
Step 6: Filter and Evaporator Coil Inspection
In the filter and evaporator section, we:
• Replaced filters with new ones, dated for accurate maintenance scheduling.
• Inspected the evaporator coil, which was clean and didn’t require chemical cleaning.
• Checked the drain pan to ensure it was free of clogs and debris, allowing proper condensate flow.
• Used CO2 to clear the drains and prevent future blockages.
Step 7: Compressor and Condenser Checks
Moving to the compressor and condenser compartment, we:
• Inspected electrical connections for tightness and checked the reversing valve (as this was a heat pump unit).
• Tested the compressor in both heating and cooling modes.
• Checked for refrigerant leaks by inspecting for oil or corrosion around fittings and pipes.
• Verified system pressures with gauges, ensuring they aligned with ambient temperature conditions.
Step 8: Amperage and Temperature Testing
With the unit running in cooling mode, we performed a series of tests:
• Tested the amperage of the compressor, indoor fan motor, and condenser fan motor to ensure each component was operating efficiently.
• Measured the supply and return air temperature differential, confirming the system was cooling effectively.
Final Steps: Wrap-Up and Recommendations
After completing the preventative maintenance, we ensured the disconnect switch was turned back on and reviewed all findings. Key recommendations included:
• Replacing the weak capacitor to prevent future issues.
• Continuing regular filter replacements and drain cleaning.
Monitoring system components for wear during future maintenance
Conclusion
This comprehensive maintenance in Rancho Cucamonga highlights the importance of regular HVAC care. By addressing small issues like a weak capacitor or dirty filters, we prevent larger problems and extend the system’s lifespan. Routine maintenance ensures optimal performance, energy efficiency, and comfort for businesses.
Let us help you protect your investment and keep your systems running smoothly year-round.
If your commercial property requires expert HVAC maintenance, contact American Cool, Heat, Air & Commercial Refrigeration today
