Restoring HVAC Efficiency at Hyatt Regency Indian Wells: Compressor Replacement & System Cleaning

March 19, 2025

Restoring HVAC Efficiency at Hyatt Regency Indian Wells: Compressor Replacement & System Cleaning

At American Cool, Heat, Air & Commercial Refrigeration, we specialize in HVAC system repairs, maintenance, and replacements to ensure businesses operate efficiently and avoid costly downtime. Our latest project took us to the Hyatt Regency in Indian Wells, CA, where we were tasked with replacing two burnt-out compressors that had failed due to poor maintenance and refrigerant leaks.

A malfunctioning HVAC system in a commercial setting like a hotel can lead to discomfort for guests, higher energy costs, and potential damage to equipment. Our mission was to restore the system’s functionality while implementing preventive measures to enhance performance and longevity.

Understanding the Problem: Compressor Failure Due to Leaks & Poor Maintenance

The two compressors in the Hyatt Regency’s HVAC system had burned out, primarily due to lack of maintenance and refrigerant leaks. When a system experiences refrigerant leaks, the compressor has to work harder to maintain cooling, leading to overheating, excessive wear, and eventual failure.

Once a compressor fails, the system requires a thorough cleanup to remove contaminants like moisture, acid buildup, and debris. To prevent future failures, we took preventative measures by installing large filter driers with removable cores, which help clean out the system after flushing it with RX-11, a specialized HVAC cleaning agent.

Step 1: Preparing for Installation

Before replacing the compressors, we needed to ensure the supporting structure and piping were properly prepared. This involved:

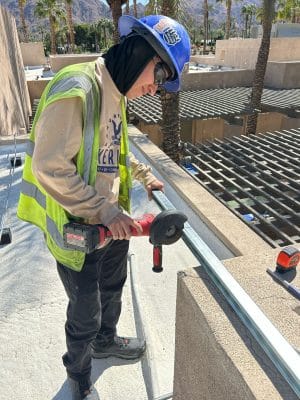

Cutting a channel for mounting brackets – To securely install the new components, one of our team members cut a precise channel that would be used to mount brackets for the system. This ensured that all components would be properly supported and aligned, preventing unnecessary strain on the system.

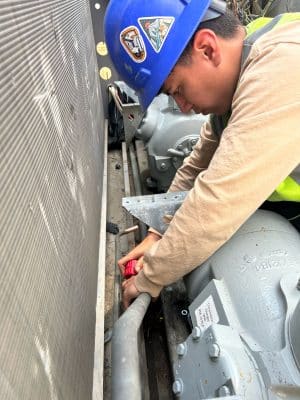

Sanding and reaming the copper pipes – Before brazing, it’s essential to prepare the copper pipes to ensure proper bonding with the brazing rod. Sanding removes oxidation and contaminants, while reaming smooths the inner edges, allowing for a tighter, leak-free connection.

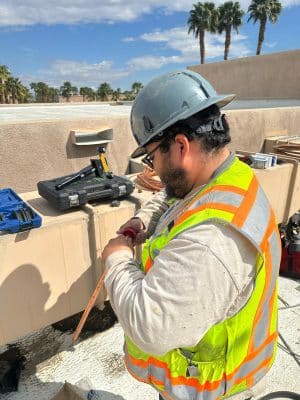

Bending copper pipe to create a 90-degree angle – Since the new filter driers had to be installed at a different angle than the previous setup, we carefully bent the copper pipes to a 90-degree angle. This adjustment allowed for a precise fit between the liquid line and the filter drier, ensuring optimal refrigerant flow.

Step 2: Installing the Liquid Line Filter Driers

After preparing the pipes, we moved on to the installation of the liquid line filter driers. These large filters play a crucial role in:

✅ Removing moisture and contaminants from the system
✅ Protecting the new compressors from debris or acid buildup
✅ Ensuring smooth refrigerant flow for optimal cooling

The installation process included:

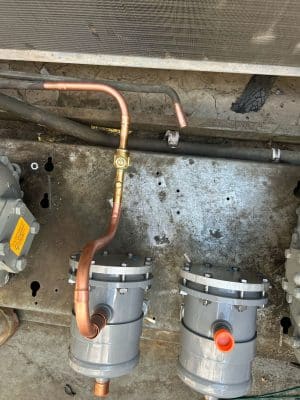

Dry fitting the pipes into the new liquid line filter drier – Before making permanent connections, we did a dry fit to ensure that all pipes were correctly positioned. This step helped us visualize the final assembly and make any necessary adjustments before brazing.

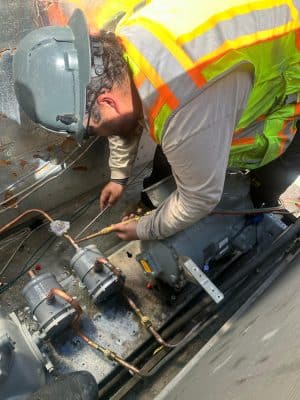

Brazing in the liquid line and filter drier for the new compressor install – Once everything was properly aligned, we proceeded with brazing the liquid line and filter drier in place. Brazing is a high-temperature welding technique that ensures a strong, leak-proof seal in refrigeration and HVAC piping.

Step 3: System Cleanup & Monitoring

After successfully installing the new compressors and filter driers, we took additional steps to ensure that the system was completely clean and functioning optimally:

1️⃣ Flushing the system with RX-11 – Before running the new compressors, we performed a full system flush using RX-11, a non-toxic, non-flammable refrigerant cleaner that removes contaminants like acid, moisture, and oil buildup.

2️⃣ Vacuuming and leak testing – To confirm that all connections were sealed correctly, we performed a vacuum test to remove air and moisture and then conducted a pressure test to check for leaks.

3️⃣ Initial system startup & performance check – Once the system was pressurized, we powered it up and monitored pressures, temperatures, and compressor performance to ensure everything was working as expected.

4️⃣ Ongoing monitoring & filter drier core replacement – Since this system had experienced significant contamination from the failed compressors, we installed removable-core filter driers that would be replaced periodically to keep the refrigerant circuit clean. This extra precaution helps extend the lifespan of the new compressors and prevents premature failure.

The Importance of Proper HVAC Maintenance

The burnt-out compressors at Hyatt Regency were a direct result of poor maintenance and refrigerant leaks, emphasizing the importance of routine HVAC servicing. Without regular inspections and system cleanups, refrigerant leaks can go unnoticed, leading to severe damage over time.

To prevent similar issues, we always recommend:

🔧 Scheduled maintenance – Routine inspections help catch leaks and inefficiencies before they lead to major failures.
💨 Checking refrigerant levels – Low refrigerant pressures are an early warning sign of leaks.
🔍 Monitoring filter driers – Replacing filter drier cores as needed helps keep contaminants from damaging critical system components.

Restoring Efficiency at Hyatt Regency Indian Wells

Through careful diagnostics, precision installation, and thorough system cleaning, we successfully replaced the two failed compressors and restored the HVAC system at Hyatt Regency Indian Wells to peak performance.

By installing high-capacity filter driers, brazing new connections, and flushing the system with RX-11, we ensured that this system will run efficiently and reliably for years to come.

Need expert HVAC service?

Whether it’s compressor replacements, system cleanups, or routine maintenance, trust American Cool, Heat, Air & Commercial Refrigeration to keep your system running at its best.
